1. Provided with differential gear, requiring no operator attendance
2.Die cutter roller can move horizontally for distance of 30mm
3. Provided with die cutter rubber mat imported brands, allowing easy and quick installation and speed adjustment, flat and smooth die cutting edge, long service life up to about 12 million times and greatly reduced usage-cost.
The testing video of our Spain client bought rotary die cutting machine before shipment:

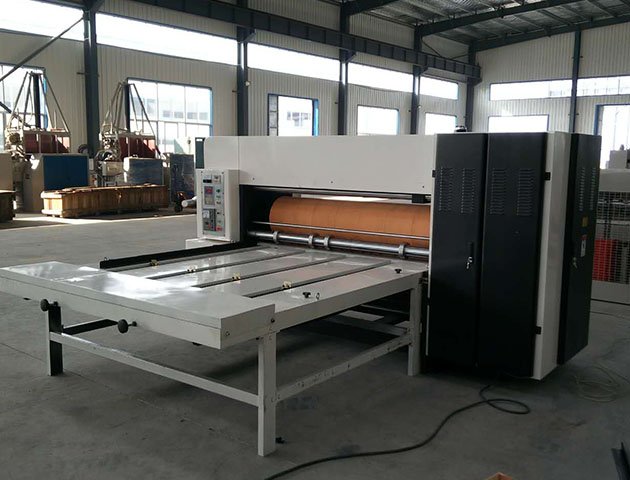

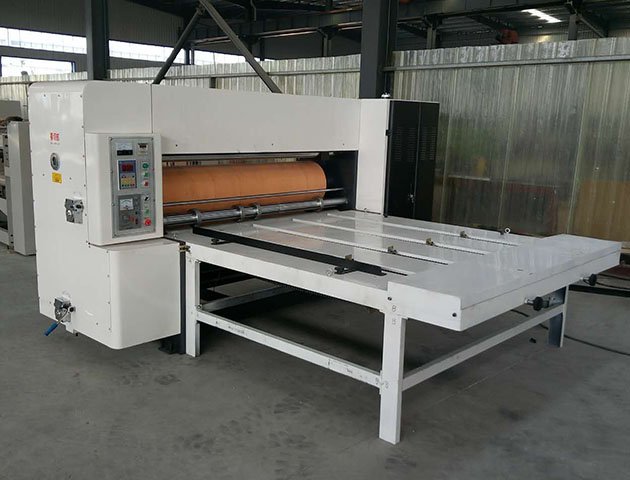

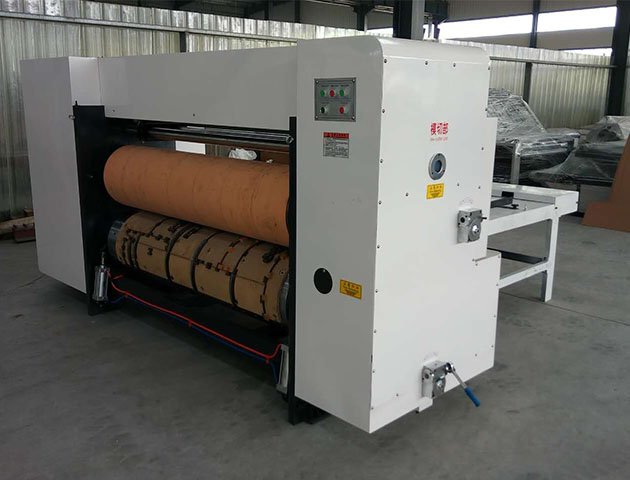

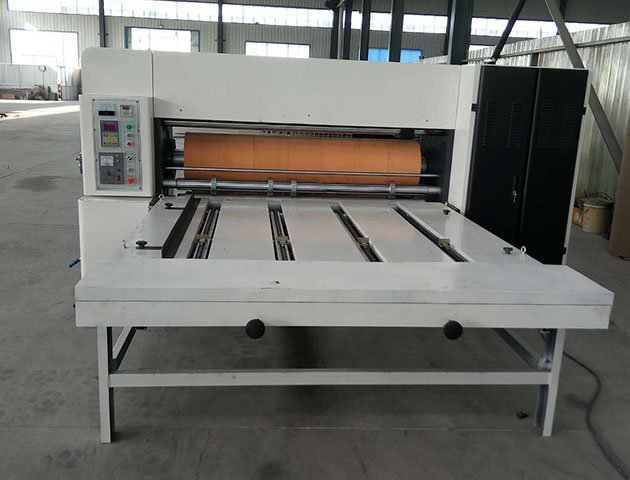

CE corrugated cardboard box rotary die cutting machine
| Model | Max feeding size(mm) | Min feeding sizes(mm) | Die-cutting thickness(mm) | Power(KW) |
| GM1600 | 1600*1350 | 300*500 | 1-8(3-5Ply) | 4 |
| GM1800 | 1800*1350 | 300*600 | 1-8(3-5Ply) | 5.5 |
| GM2000 | 2000*1600 | 400*600 | 1-10(3-7Ply) | 7.5 |
| GM2400 | 2400*1600 | 400*700 | 1-10(3-7Ply) | 7.5 |
